Precision Carbon Steel Fabrication: Achieve Tight Tolerances

It’s a fact that precision carbon steel fabrication measurements in manufacturing can boost the quality of work by up to 40%. This accuracy is very important in industries where even tiny errors cause big problems. Think about airplanes, cars, or buildings—the need for parts measured just right is increasing. This means we must really understand how to work with carbon steel.

Getting tight tolerances takes a full plan, from knowing how the material acts and how it might change shape to using advanced cutting, bending, and welding methods. We’ll look at the important things that help make precise parts, like choosing the right machines, using strict quality checks, and needing skilled workers.

Here’s what you should know about carbon steel fabrication:

Tight tolerances improve performance reliability by up to 40%.
CNC machining ensures repeatability within ±0.01 mm.
High-quality materials boost dimensional accuracy by 30%.
Skilled machinists enhance precision by 20%.
Effective quality control reduces material waste by 10%.

Understanding Carbon Steel and Its Properties

Achieving tight tolerances in carbon steel fabrication begins with a deep understanding of the material itself. Carbon steel, while versatile and widely used, presents unique challenges when precision is necessary.

Material Characteristics

Carbon steel comes in different grades, each with distinct properties. Low carbon steel, for example, is easily formable but may not have the same hardness as high-carbon steel. The choice of grade directly influences the achievable tolerance.

Important properties like tensile strength (resistance to pulling forces), yield strength (point at which permanent deformation occurs), and hardness (resistance to indentation) are essential. These properties dictate how the material responds to cutting, forming, and welding.

Thermal expansion
is another major factor. Carbon steel gets bigger or smaller with temperature changes, which can mess up m asurements. So, knowing how much it changes is important for accurate work, especially when the temperature changes a lot.

Potential Challenges

Working with carbon steel to achieve tight tolerances isn’t always easy. There are some common problems that can make it hard to get the measurements just right.

Warping and Distortion: Heat generated during cutting and welding can cause uneven expansion and contrac on, leading to warping or distortion. This is a big challenge when aiming for tight tolerances.
Residual Stress: Fabrication processes can leave residual stresses within the material. These stresses can cause dimensional instability and may change the shape the fabricated component later on.
The metal’s grain can also effect how the metal reacts to forming and cutting.
Carbon steel is also prone to rust, so understanding the environmental conditions in which the part will be used is important.

Recognizing these issues early in the process prevents costly rework and ensures the final product meets the required specifications.

Design and Planning for Carbon Steel Fabrication Precision

Achieving tight tolerances isn’t just about what happens on the shop floor; it starts with careful planning and design. Precision in fabrication is built from the ground up, beginning with the digital blueprint.

CAD/CAM Integration

Computer Aided Design (CAD) software allows engineers to create detailed 3D models of parts. This digital precision is the foundation for accurate fabrication.
Computer Aided Manufacturing (CAM) software takes those CAD models and translates them into instructions for CNC machines. This minimizes human error and ensures that the machines follow the design precisely.
CAD/CAM integration helps in accurately defining dimensions and tolerances, reducing the risk of errors during the manufacturing process.

Tolerance Stacking and Analysis

“Tolerance stacking” refers to how small variations in individual parts can add up and affect the overall fit of an assembly. Even if each part is within its specified tolerance, the combined effect can lead to problems.

Analyzing tolerance stack up involves predicting how these variations will interact and adjusting tolerances accordingly. This ensures that the final assembly meets the required specifications.

This analysis can be done using software, or by hand, depending on the complexity of the project.

Material Selection and Preparation

To make things really accurate with carbon steel, you need to start with good steel. Even if you’re careful, bad steel can cause problems.

Material Selection

The first important step is choosing the right kind of carbon steel. This choice affects how well your final product works and how accurate you can make it.

Here are important things to watch for

Grade Specification

Selecting the right grade of carbon steel is very important. For example, ASTM A36 is commonly used for structural applications because of its good weldability and moderate strength, while AISI 1045, a medium-carbon steel, is chosen for parts requiring higher hardness and wear resistance.

Chemical Composition

Precise control of the steel’s chemical composition is also necessary. Variations in carbon, manganese, silicon, and other alloying elements directly influence mechanical properties and fabrication behavior. Mill test reports (MTRs) help check the chemical composition and mechanical properties of the metal.

Surface Quality

The surface finish of the raw material can impact fabrication precision too. Hot rolled steel, for instance, has a mill scale that must be removed for accurate machining and welding. Cold-rolled steel has a smoother surface and tighter dimensional tolerances, so it requires less extensive preparation.

Internal Defects

Ultrasonic testing (UT) or magnetic particle inspection (MPI) can detect internal defects such as inclusions, voids, or cracks, to ensure material integrity before fabrication.

Material Preparation

Before you start building, getting the steel ready is necessary. This step makes sure the material is clean and in the right shape for accurate work.

Here are some good techniques to follow when preparing carbon steel:

Descaling: Mill scale, an oxide layer formed during hot rolling, must be removed to prevent interference with welding and machining. Techniques include pickling (chemical removal), abrasive blasting, and mechanical descaling.
Stress Relieving (Pre-Fabrication): For materials with high residual stresses from previous processing, pre fabrication stress relieving can be used. This involves heating the steel to a specific temperature and holding it for a predetermined time to reduce internal stresses, minimizing distortion during fabrication.
Straightening and Flattening: Rolled or extruded carbon steel may exhibit curvature or flatness deviations. Hydraulic presses or roll straightening machines are used to achieve the required flatness and straightness tolerances.
Edge Preparation: For welding applications, precise edge preparation is necessary. This involves beveling, chamfering, or creating a specific groove geometry to ensure proper weld penetration and fusion. CNC machining or edge milling machines are used to achieve accurate edge profiles.
Cleaning: Thorough cleaning to remove contaminants like oil, grease, or dirt is essential for accurate marking, machining, and welding. Solvent cleaning, vapor degreasing, or alkaline cleaning are commonly used.
Dimensional Verification: Before fabrication begins, dimensional verification using calibrated measuring tools (e.g., calipers, micrometers, height gauges) ensures that the raw material meets the specified dimensions and tolerances.

To ensure accuracy with carbon steel, you need to start with the right steel and get it ready properly. Knowing the different types of steel, checking its chemicals, and cleaning it well helps you make sure your project starts right.

Fabrication Techniques for Tight Tolerances in Carbon Steel Metal

Achieving precision in carbon steel fabrication relies heavily on the selection and execution of appropriate fabrication techniques. Each method has its own set of capabilities and limitations, which directly affect the final product’s accuracy.

Precise Cutting Methods

The initial cut sets the stage for precision. Choosing the right cutting technique is essential for achieving accurate dimensions and minimizing material distorton.

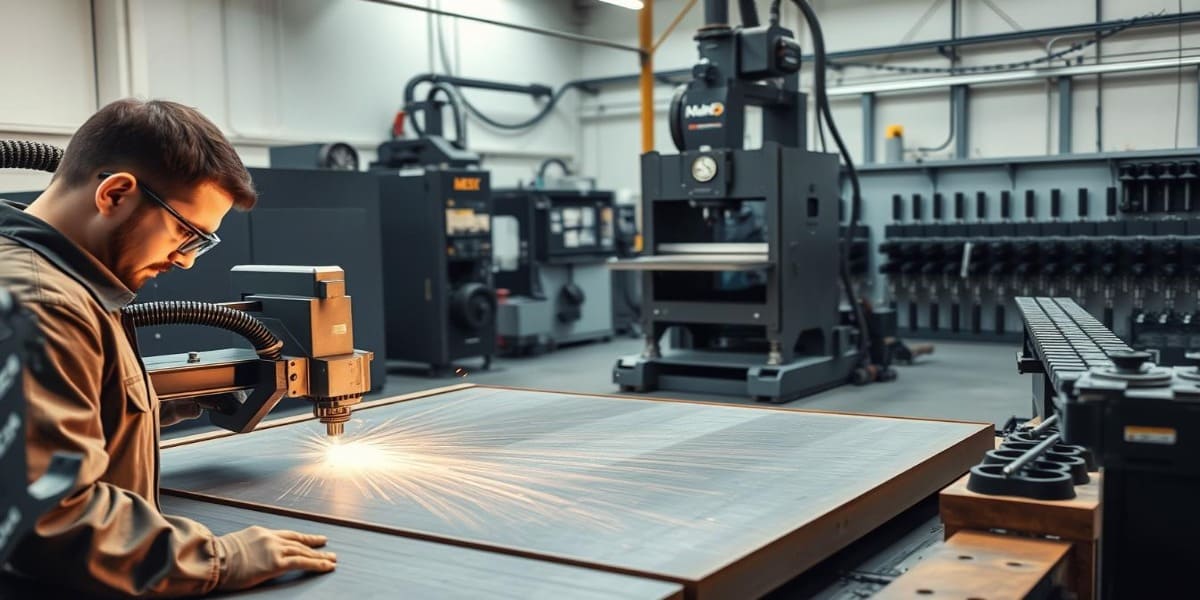

Laser Cutting: This method uses a focused laser beam to cut intricate shapes with high precision and minimal heat-affected zones (HAZ). It’s ideal for thin to medium-thickness carbon steel and complex geometries.
Plasma Cutting: Plasma cutting utilizes a high-temperature plasma arc to cut thicker carbon steel. While faster than laser cutting, it may produce a wider kerf and a larger HAZ, which affects dimensional accuracy.
Waterjet Cutting: This method uses a high pressure stream of water mixed with abrasives to cut carbon steel without generating heat. It’s suitable for various thicknesses and materials as it offers good precision and minimal distortion.
Minimizing Heat-Affected Zones (HAZ): Controlling the heat input during cutting is important to prevent warping and distortion. Techniques like pulsed laser or plasma cutting can reduce HAZ.

Accurate Forming and Bending

Bending and forming carbon steel to precise shapes requires careful control and specialized equipment to minimize distortion. Here are some effective techniques:

CNC Bending Machines: Computer Numerical Control (CNC) bending machines have precise control over bending angles and radii, which ensures dimensional accuracy. These machines minimize springback and variations in bend results.
Minimizing Springback: Springback, the tendency of carbon steel to return to its original shape after bending, can affect dimensional accuracy. Techniques like overbending and air bending compensation are used to lower this effect.
Precise Die and Punch Selection: The correct selection of die and punch tooling for the specific material thickness and bend radius is necessary for accuracy.

Welding and Joining

Joining carbon steel components requires welding techniques that minimize distortion and maintain dimensional accuracy.

TIG and MIG Welding: Tungsten Inert Gas (TIG) and Metal Inert Gas (MIG) welding have precise control over heat input and weld deposition, minimizing distortion. TIG welding is known for its high-quality welds, while MIG welding is faster and suitable for thicker materials.

Proper Welding Procedures: It’s important to follow established welding procedures, including proper joint design, filler material selection, and welding sequence to minimize residual stresses and distortion.

Stress Relieving Processes: After welding, stress relieving heat treatment is often done to reduce residual stresses and improve dimensional stability.

Machining

For achieving the tightest tolerances, machining operations are used to refine dimensions and create precise features.

CNC Machining: CNC machining operations, such as milling, drilling, and turning, are used to achieve very tight tolerances on critical dimensions. These processes remove material with high precision to ensure accurate final dimensions.

Tooling and Fixturing: The quality of tooling and fixturing directly affects machining accuracy. Using sharp, properly calibrated tools and rigid fixtures minimizes vibrations an ensures precise material removal.

To make very accurate parts from carbon steel, you need to choose and use the right ways to cut, bend, weld, and machine it. By knowing how each method works and focusing on being precise every step of the way, you can build high-quality parts that meet strict requirements.

Measurement and Quality Control

To make sure the finished steel parts are exactly right, you need careful measurement and quality checks.

Advanced Measurement Tools

Using the right tools to measure parts is needed when checking accuracy. Here are some advanced measurement tools you can use:

Coordinate Measuring Machines (CMMs): CMMs use probes to measure the dimensions of parts with high accuracy. They provide detailed dimensional data for verification and analysis.
Laser Scanners: Laser scanners capture 3D point cloud data of parts, allowing for fast and accurate dimensional analysis. They are particularly useful for complex geometries and large components.
Calibrated Measurement Tools: Calipers, micrometers, and height gauges, when properly calibrated, provide accurate measurements for dimensional verification.

Quality Control Procedures

Setting up good quality checks along the way helps catch problems early and make sure everything is consistent. Following these procedures is recommended:

Statistical Process Control (SPC): SPC uses statistical techniques to monitor and control variations in fabrication processes. It allows for early detection of deviations and ensures consistent quality.
Inspection and Verification: Thorough inspection and verification are conducted at different stages of fabrication to make sure that the product conforms to specifications. This includes first-article inspection, in process inspection, and final inspection.
Non Destructive Testing (NDT): NDT methods, such as ultrasonic testing, radiographic testing, and magnetic particle inspection are used to detect internal and surface defects without damaging the material.

Inspection and Verification

Documenting and maintaining quality control is very important. Follow these techniques:

Detailed inspection reports.
Calibration of all measuring tools.
Documenting all quality control procedures.

To sum it up, careful measuring and quality checks are essential for making accurate steel parts. Using the right tools and following good procedures helps catch problems early and makes sure everything is made to the right standards.

Best Practices and Considerations

Making really accurate carbon steel parts isn’t just about using the right tools; it’s also about doing things the best way and thinking about other things that can affect the work.

Skilled Workers

You need experienced workers who are well-trained to handle tricky jobs and make sure everything is precise. They pay close attention to details and know how the steel behaves, which helps avoid mistakes. They also need to keep learning as new technology comes out.

Machine Care

Keeping the machines working well is important. You need to regularly check and adjust them (like CNC machines and measuring tools) to make sure they’re accurate. Having a schedule to fix things before they break keeps the work going smoothly. Also, keeping the machines clean and oiled helps them work their best.

Environment

The place you work in matters. Changes in temperature can change the size of the steel, so you need to keep the temperature steady. Too much moisture (humidity) can cause rust and mess up measurements, so you need to control that too. Keeping the work area clean is also important.

Cost Considerations

Making things super precise can cost more, so you need to balance accuracy with how much it costs. Finding ways to do things more efficiently and waste less material can help keep costs down without losing quality. Planning everything carefully from the start can also prevent expensive mistakes.

By thinking about all these things, you can make really accurate carbon steel parts that meet tough requirements.

Precision Carbon Steel Fabrication – A Path to Excellence

To make steel parts that fit perfectly, you need to do a lot of things right. It’s not just about using the right machines, but also knowing the steel well, planning carefully, and checking everything closely. Good workers, well-kept machines, and a clean workspace are also important.

From choosing the right steel to measuring the finished part, every step matters. Using computer programs to design and build, and having good ways
to check quality, helps make sure everything is accurate.

If companies follow these steps, they can make steel parts that are really precise and reliable. This helps them make better products, waste less material, and keep their customers happy. Basically, if you want to make great steel parts, you need to focus on accuracy from start to finish.

Frequently Asked Questions

What is Precision Fabrication, and Why Is It Important?

Precision fabrication involves creating components with exact measurements and tight tolerances. It’s crucial for industries like aerospace and automotive, where accuracy ensures safety and performance.

How Does Material Preparation Impact the Fabrication Process?

Proper preparation, such as cleaning and cutting, ensures the material behaves predictably during forming and welding. This step minimizes errors and enhances the final product’s quality.

What are the Best Cutting Methods for Achieving Tight Tolerances?

Laser cutting, CNC plasma, and waterjet cutting are top choices. These methods offer high precision and clean edges, essential for maintaining tight tolerances.

How Can Distortion Be Minimized During Forming and Bending?

Using CNC press brakes and roll forming helps control distortion. Additionally, proper planning and skilled labor ensure the material retains its shape and dimensions.

What Welding Techniques are Best for Precision Fabrication?

TIG and MIG welding are ideal for precision work. They provide strong, clean welds, especially when combined with welding fixtures to maintain alignment.
